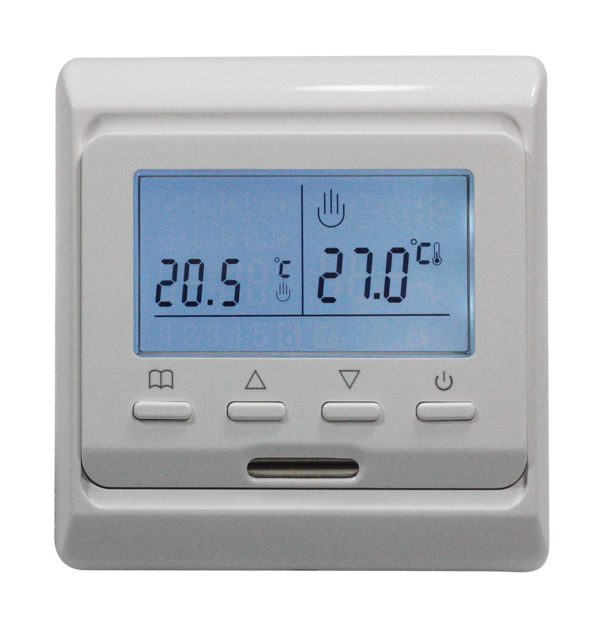

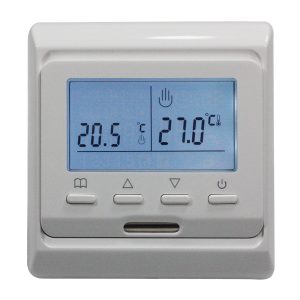

Bewarm™ – Bepro HVAC Underfloor Heating Room Thermostat

SPECIFICATION:

• Power – 90-240VAC 50/60Hz
• Probe Sensor – NTC(10k)1%
• Temperature Display – 0℃ to 40℃
• Default Setting Temperature Range – 5℃ to 35℃
• Limit Temperature Range – 0℃ to 70℃
• Dimensions – 86mm X 86mm X27mm (HxWxD)
• Color – White
• Max. Control Accuracy – 0.5℃

FEATURES:

• Large LCD display with backlight
• Operate via App on Smartphone
• WiFi Compatible
• Includes Built-In Sensor & External Sensor
• 0.5℃ Accuracy keeps Temperature within the level you set.
• Child lock to prevent mis-operation by children
• Optional programming Period: 7 individual day programming with 48 separate time to select economic or comfort mode.(Every half hour as a period of time) /cancel the programming function.

IMPORTANT SAFETY INFORMATION

Always turn off power at the main power source by unscrewing fuse or switching circuit breaker to the off position before installing, removing, cleaning, or servicing this thermostat.

Read all of the information in this manual before installing this thermostat.

Only a professional contractor should install this thermostat.

All wiring must conform to local and national building and electrical codes and ordinances

If system is not operating properly, check wiring and replace fuse if necessary.

Use this thermostat only as described in this manual
