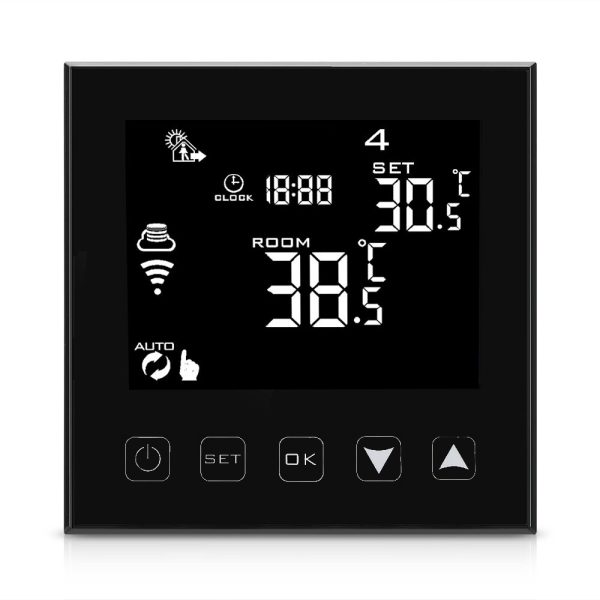

Bewarm™ – Betouch HR60 LED Underfloor Heating Thermostat – Black

SPECIFICATION:

• Power – 200-240VAC 50/60Hz
• Load Current – GA: 1A GB: 16A
• Temperature Range – 5℃ to 35℃
• Floor temperature control range – 5℃ to 70℃
• Accuracy – ±1℃
• Dimensions – 86mm X 86mm X16mm (HxWxD)
• Color – White

FEATURES:

• Large LCD display with backlight
• Operate via App on Smartphone
• WiFi Compatible
• Permanent user setting retention during power loss
• Can control valve and boiler at the same time
• Optional type of control for different heating application including room thermostat; floor thermostat or room thermostat with floor limitation
• Optional programming Period: 7 individual day programming with 48 separate time to select economic or comfort mode.(Every half hour as a period of time) /cancel the programming function.
• Prevent heat inertia function
• Display temperature recalibrates

IMPORTANT SAFETY INFORMATION

Always turn off power at the main power source by unscrewing fuse or switching circuit breaker to the off position before installing, removing, cleaning, or servicing this thermostat.

Read all of the information in this manual before installing this thermostat.

Only a professional contractor should install this thermostat.

All wiring must conform to local and national building and electrical codes and ordinances

If system is not operating properly, check wiring and replace fuse if necessary.

Use this thermostat only as described in this manual
