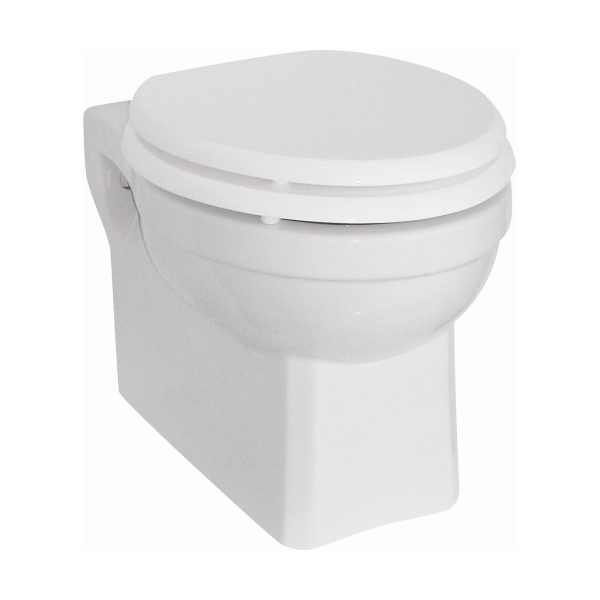

Burlington – Wall Hung Pan

Finish White
Material Vitreous China
Shape Standard

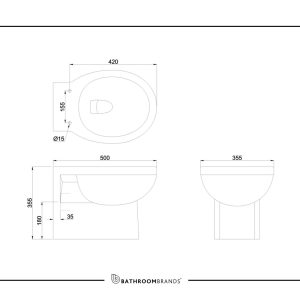

Length 500mm
Width 365mm
Height 355mm
Weight 27.45kg
Compliance BS EN 14688:2006 Sanitary appliances. Wash basins. Functional requirements and test methods BS EN 31:2011 Pedestal wash basins. Connecting dimensions Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-Cr
Additional Information
Wall hung pan must be used with a concealed cistern and a method for safely securing the pan to the ‘wall’
Steel frame for wall hung pan W33A is recommended for fixing the pan to the back wall and floor
Recommended lever flush concealed cistern is : FTL Plastic cistern with dual lever flush
Recommended button flush concealed cisterns are : W31A – top and front access with flush button; W32A – front access dual flush plate; W35A – top access dual flush plate
Additional Infomation
Wall hung pans must be used with Burlington toilet seats
