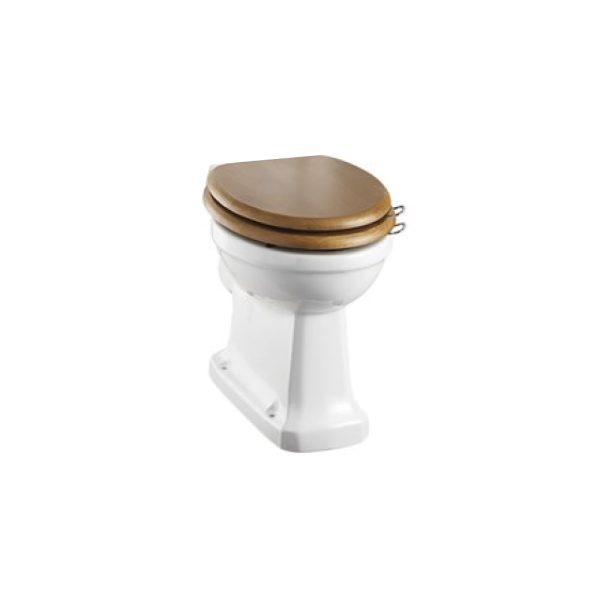

Burlington – Regal Close Coupled Pan

Finish White
Depth 720mm
Material Vitreous China
Width 520mm
Height 1490mm
Weight 38.1kg
Height Type Standard
Rimless No
Trap Option P-trap
Compliance BS EN 997:2012 WC pans and WC suites with integral trap BS EN 33:2011 Pedestal W.C. pans with close-coupled flushing cistern. Connecting dimensions
Additional Information
Regal Height pan P12 ( floor to pan rim height 48cm ) is 8cm taller than a standard pan.
Water Inlet valve hole is located on the base of cistern tank on the right hand side
Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511). SP511 : Back entry kit for C1/C3/C24, including back entry inlet valve with flexible hose and plug
Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26
Metal connection bracket.
Supplied with floor fixings.
Recommended to be used with cistern tank isolation valve W25
Does not include toilet seat, please add on your choice of seat
