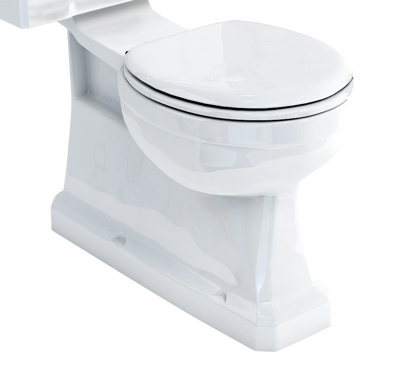

Burlington – Close Coupled S Trap Pan for Floor Mounted Outlet Pipe

Finish White
Material Vitreous China
Length 730mm
Width 520mm
Height 780mm
Weight 38.1kg
Height Type Standard
Flush Type Lever
Trap Option S-trap
Compliance BS EN 33:2011 Pedestal W.C. pans with close-coupled flushing cistern BS EN 997:2012 WC pans and WC suites with integral trap
Additional Information
Recommended to be used with cistern tank isolation valve W25
If the wall to soil pipe distance is 21cm, then use the combination of P18&C1/C2/C3/C4
The S trap P18 pan & C30 cistern combination should be used where the distance from the wall to the center of the soil pipe in the floor is 24cm The soil pipe is fully enclosed and not visible
Water Inlet valve hole is located on the base of cistern tank on the right hand side Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511). SP511 : Back entry kit for C30, including back entry inlet valve with flexible hose and plug
Close coupled wc must be used with standard Burlington toilet seats
