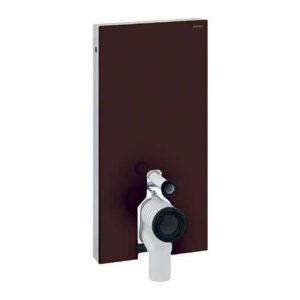

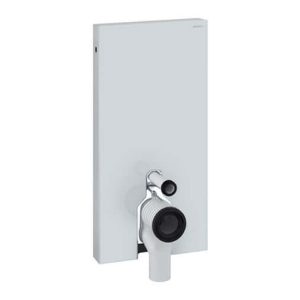

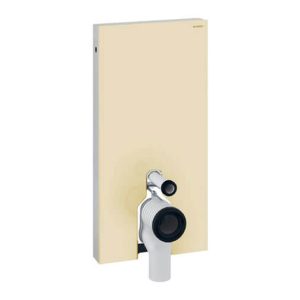

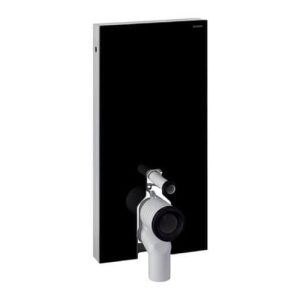

- Available in five different finishes – Optional and Size height

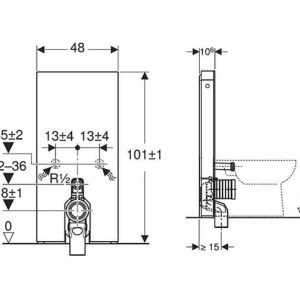

- Size: 480 x 1010mm [Width x Height] and Size: 505 x 1140mm [Width x Height]
- Glass thickness 8mm

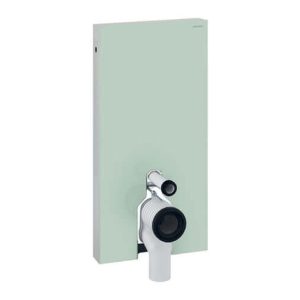

- Mint colour 6mm glass thickness
- Features Dual flush
- Compensation of dimensional tolerances possible
- Front cladding made of glass (ESG)
- Cistern fully insulated against condensation
- Side cladding made of aluminium brushed
- Self-supporting
- Adjustable flush volume
- Water supply connection on the bottom
- Water supply connection on the left/right possible with accessories
- Flow pressure 0.1-10 bar
- Maximum operating temperature, water 25 °C
- Flush volume factory setting 6 and 3 l
- Flush volume large adjustment range 4.5 / 6 l
- Flush volume small 3 l
- Water supply Side connection Set [Optional]
- Vario Fastening Set [Optional]
- Please refer installation instructions PDF from below
- Application purposes
- For floor inlets
- For renovations, conversions and new buildings
- For wall inlets with an inlet height of 18 cm
- For floor-standing WCs with P-bend and water inlet height 32–36 cm above the floor (EN 33)
- For replacing low-level exposed cisterns
- For replacing floor-standing WCs with close-coupled exposed cistern
- For connecting Geberit AquaClean Sela floor-standing WC
- For connecting Geberit AquaClean WC enhancement solutions with accessories
- For mounting on finished floors
- For installation in front of dry-walls or solid walls
- Scope of delivery
- Water supply connection set with 2 angle stop valves, 1/2″
- Flush bend extension 160 mm
- Sleeve made of EPDM: Ø 44 / 55 mm
- Connection bend made of PP Ø 90 mm
- Adaptor socket made of PE-HD Ø 90 / 110 mm
- Base cover
- Fastening material for drywall
- Fastening material.
