- Manufacturing code of this product is 111.352.00.5
- Frame in blue powder coating and cistern in white finish
- Size: 425 x 1120mm [Width x Height]
- Frame made of steel and Cistern made of plastic

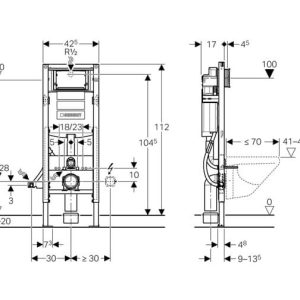

- Refer technical drawing for more details
- Please refer installation manual PDF from below for more instructions
- Guarantee: 1Year
- Comes completes with Sigma concealed cistern UP320 with front actuation
- Suitable for:
- Drywall construction
- Installation in part- or room-height prewall or system walls installations
- Installation in room-height installation walls
- Less-abled installation
- Wall-hung WCs with connection dimensions in accordance with EN 33:2011
- Wall-hung WCs with large projection up to 700 mm
- Floor constructions 0–200 mm
- Characteristics
- Powder-coated self-supporting frame
- Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
- Frame width reduced for placement of support handles next to the element
- Adjustable installation height of WC during the installation phase: 410–460 mm
- Adjustable galvanized feet: 0–200 mm
- Non-slip leg supports and Rotatable foot plates
- Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
- Connection bend can be mounted without tools at different depths adjustable range 45 mm
- Fastening for connection bend and sound-absorbing
- Concealed cistern with front actuation and fully insulated against condensation
- Cistern fulfills standard requirements in accordance with EN14055, Class II
- Immediate post flush possible with factory setting
- Tool-free installation and maintenance work on concealed cistern
- Water supply connection on the rear or top centre
- Protection cover box protects against moisture and dirt which can be cut to length for service opening
- Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
- Comes with fastening option for electrical connection
- Supplied without wall fixings
- The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
- Flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush.
- Must be used with pans designed for low volume flush
- Flow pressure: 0.1-10 bar
- Maximum operating water temperature: 25° C
- Flush volume factory setting: 5.8 and 3 l
- Flush volume small adjustment range: 3-4 l
- Supplied with:
- Water supply connection Rp 1/2″ – R 1/2″ compatible with MeplaFix, with integrated angle stop valve and hand wheel
- Protection box for service opening
- Connection set for WC Ø 90mm
- Connection bend 90° made of PE-HD Ø 90mm
- Adaptor socket made of PE-HD Ø 90 / 110mm
- 2 protection plugs
- Cup for flush volume reduction 4.0 / 2.6 l
- 2 threaded rods M12
- Fastening material.
