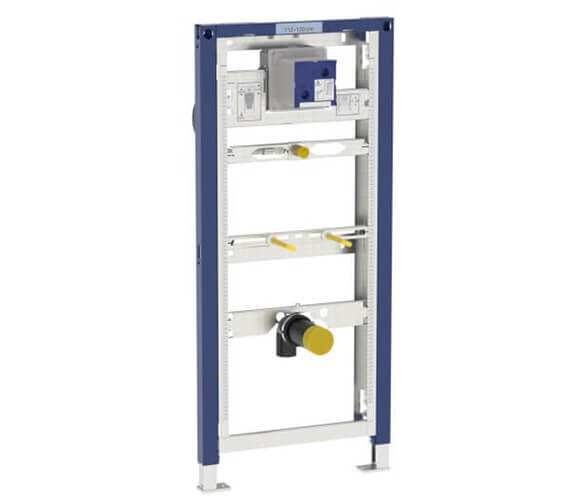

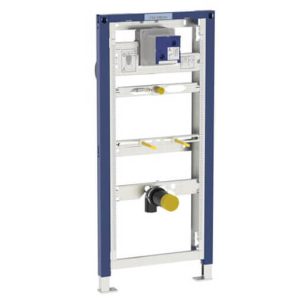

Geberit – Duofix Element for Urinal, 112–130 cm, Universal, for Spray Head
- Manufacturing code of the product is 111.676.00.1

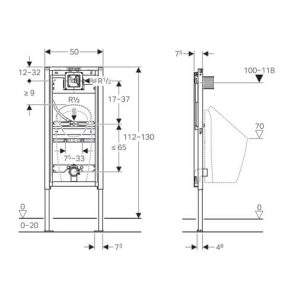

- Size: Width 500 x Height 1120-1300mm
- Self-supporting frame, powder-coated
- Frame with Ø9 mm drilling holes for fastening in wood frame construction
- Galvanized adjustable feet 0–20 cm
- Non-slip leg supports with rotatable foot plates
- Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
- Element height adjustable to urinal, 1120-1300mm
- Connection positions for Geberit urinal Preda prepared
- Universal concealed housing for Geberit urinal flush controls
- Terminal for electrical connection in concealed housing
- Right water supply connection on concealed housing
- Water supply connection compatible with MasterFix and MeplaFix
- Elbow connector can be mounted without tools
- Pre-mounted stop valve with throttle
- With built-in conduit pipe to rinse the pipeline
- Protection box for service opening 10.5 x 10.5 cm can be cut to length without tools
- Flush hose can be bent
- Flush hose with guide to prevent standing water
- Fastening for inlet Rp 1/2″, adjustable in height and sideways
- Fastening for connection bend, height-adjustable and sound absorbing
- Urinal fasteners M8 width- and height-adjustable
- Crossbars with centering marks, adjustable without tools
- Markings for connection positions of Geberit urinals Preda and Selva
- Additional fastening possible for urinal with accessories
- Flow pressure 1-8 bar
- Maximum test pressure, water 16 bar
- Maximum test pressure, air / inert gas 3 bar
- Maximum operating temperature, water 30 °C
- Flow rate at 1 bar without flow limiter 0.3 l/s
- Flow rate at 1 bar with flow limiter 0.24 l/s
Application purposes
- For drywall construction
- For installation in part- or room-height pre-wall installations
- For installation in room-height installation walls
- For installation in part- or room-height Geberit Duofix system walls
- For mounting urinals
- For Geberit urinals Preda and Selva
- For installation of Geberit urinal flush controls
- For floor constructions 0–20 cm
Scope of delivery
- Elbow tap connector R 1/2″
- Protection box with cover
- Protection plug
- Connection bend made of PE-HD, ø 63 / 50 mm
- Protective cap
- Seal Ø57 / 50 mm
- Urinal trap Ø50 mm, with seal on urinal
- 2 threaded rods M8
- Fastening material
- Download Installation Instruction PDF from below.
