- Exposed trim parts

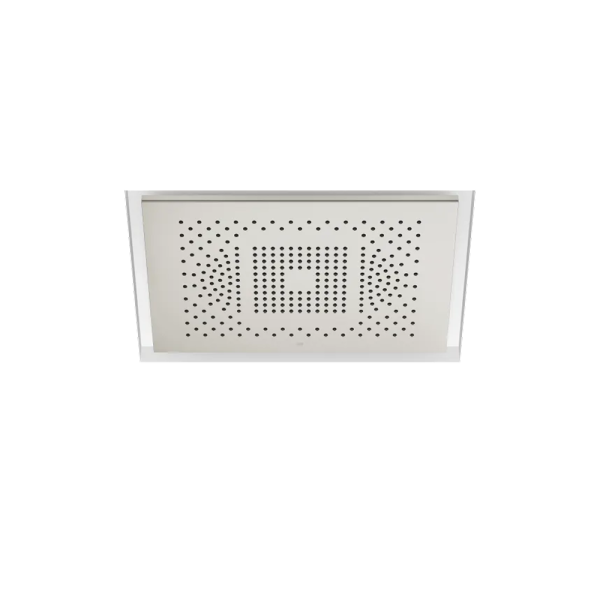

- Rain panel with 2 different spray modes
- PURIFY RAIN, 175 x 175 mm, max. flow rate 10 l/min (at 3 bar)
- FULL RAIN, 455 x 315 mm, max. flow rate 14 l/min (at 3 bar)
- With anti-scale system
- Technical data:
- Rain panel, 600 x 420 mm
- Min. recess depth 150 mm
- Weight 15kg
- Feed pipe (hot/cold): 2x DN 20
- Electric:
- Ceiling module power supply
- 24V DC (CV)
- Ambient lighting
- LED coloured light RGBW
- Bulbs protected against splashing water
- Activation:
- ZigBee Light Link RGBW controller
- Environment:
- Not suitable for outdoor use.
- Not suitable for use in a steam room.
- Not suitable for use in chlorinated or salty environments.
- Planning tips:
- Recommended control element: xTool
- Provided by customer: Zigbee gateway
- Comply with the protection zone regulations as defined in DIN VDE 0100, Part 701 (IEC 60364-7-701).
- Recommended water hardness: 6-7 °dH – if the water is harder, integrate a water softener that uses the ion exchange principle into the feed pipe.
- For choosing the drainage, taking into consideration the discharge of all the products in the shower, the specific demand needs to be assessed. Recommendation: Floor drain (connected rating) = 1l/sec, drainage rate DN 50
- For the optimum choice of hot water storage device – taking into consideration additional drawing-off points and the frequency with which the rain panels are used – the specific demand needs to be assessed
- Dornbracht recommends consulting a systems integrator.
