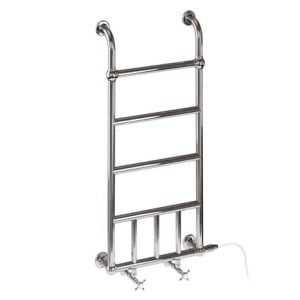

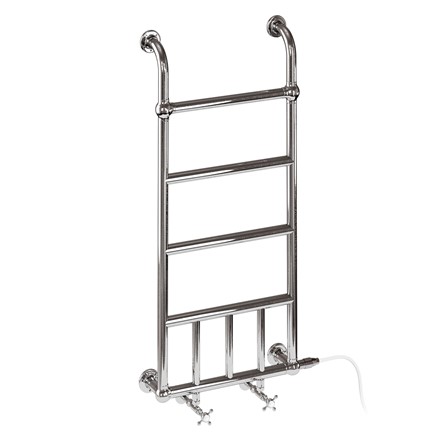

Burlington – Chaplin Towel Radiator in Chrome

Finish Chrome
Material Steel
Length 126mm
Width 542mm
Height 1142mm
Weight 16.5kg
Compliance BS EN442-1:2003 Specification for radiators and convectors. Technical specifications and requirements BS EN442-2:2003 Specification for radiators and convectors. Test methods and rating Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-Cr
Additional Information
Diameter of tubes is 32mm.
Output:1024 BTUs/235 watts(△T=50℃)
For technical information on the summer heating kit please refer to the summer heating kit sectio
Distance from wall to the rail is 94mm
Includes all brackets and fixings. Valves are required. These are not included.
Operating pressure up to 8 bar.(Certified by BEN N.L) Maximum working temperature:70℃
234mm plumping pipe centers
Additional Infomation
Fill the radiator approximately 90% (6.5) with an anti-rust mixture if the radiator is to be used for electric heating only (not connected to a central heating system) Includes all brackets and fixings.
